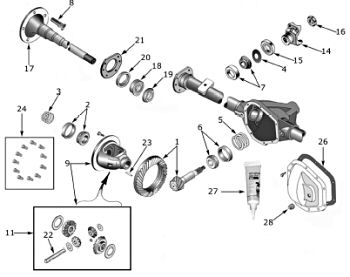

Model 44 Rear Axle for Jeep Wrangler TJ
|
|
NO. |
DESCRIPTION |
RATIO |
YEARS |
PART# |
PRICE |
1 |
Ring & Pinion set, w/ 3/8" ring gear bolt (43/14) (31492/30060) |
3:07 |
97-03 |
83504197 |
$392.95 |
Ring & Pinion set (39/11) (46638/47238) |
3:55 |
97-99 |
4882841 |
$494.95 |
Ring & Pinion set (41/11) (32072/18515) |
3:73 |
97-04 |
4882352 |
$446.95 |
Ring & Pinion set (41/10) (45564/45565) |
4:10 |
97-99 |
4882844 |
$401.95 |
2 |
Side Bearing Set (2 bearings & 2 cups) |
ALL |
97-04 |
4746733 |
$58.95 |
3 |
Shim Set, carrier |
ALL |
97-02 |
8129222 |
$11.95 |
Shim Set, carrier |
ALL |
03-04 |
5093047AA |
$124.95 |
4 |
Slinger, Pinion |
ALL |
97-04 |
4031974 |
$5.95 |
5 |
Shim Set, Pinion with & w/o Trac-Lok |
ALL |
97-04 |
8129221 |
$43.95 |
6 |
Bearing Kit, Pinion INNER (cup and cone) |
ALL |
97-02 |
8124051 |
$43.95 |
Bearing Kit, Pinion INNER (cup and cone) |
ALL |
03-04 |
5014847AA |
N/A |
7 |
Bearing Kit, Pinion OUTER (cup and cone) |
ALL |
97-04 |
8124052 |
$39.95 |
8 |
Stud, Wheel |
ALL |
97-02 |
83503053 |
$1.95 |
Stud, Wheel |
ALL |
03-04 |
4762841 |
$2.95 |
9 |
Case Assy, STANDARD (includes gear set) 3/8" bolts |
ALL |
00-03 |
83503073 |
$231.95 |
|
10 |
Case Assy, Trac Loc (includes gears & plates) 3/8" bolts |
ALL |
97-04 |
83505431 |
$473.95 |
11 |
Gear Set, Differential, STANDARD |
ALL |
00-04 |
4778595 |
$189.95 |
12 |
Gear Set, Differential, LOCKING |
ALL |
97-04 |
83505432AB |
N/A |
13 |
Disc Kit, LOCKING |
ALL |
97-04 |
994345AB |
N/A |
14 |
Yoke, Driveshaft |
ALL |
1997 |
83503388 |
$37.95 |
Yoke, Driveshaft |
ALL |
98-04 |
4897026AA |
$45.95 |
15 |
Seal, Pinion |
ALL |
97-01 |
4746772 |
$11.95 |
Seal, Pinion (flanged) |
ALL |
01-04 |
5072473AA |
$9.95 |
Seal, Pinion (with TruLok) |
ALL |
03-04 |
5066446AA |
$12.95 |
16 |
Nut, Pinion |
ALL |
97-04 |
1791575 |
$2.95 |
17 |
Axle Assy, Right 29.75" long |
ALL |
97-02 |
4882350 |
$192.95 |
Axle Assy, Left 29.25" long |
ALL |
97-02 |
4882351 |
$192.95 |
18 |
Bearing, Wheel |
ALL |
97-04 |
83503064 |
$36.95 |
19 |
Ring, Axle bearing retaining |
ALL |
97-04 |
83503077 |
$ 9.95 |
20 |
Seal, Wheel Bearing (axle outer) |
ALL |
97-04 |
83503063 |
$ 5.95 |
21 |
Retainer, (Front Disc/Rear Drum Brakes) |
ALL |
97-04 |
5010811AA |
$6.95 |
Retainer, (4-Wheel Disc Brakes) |
ALL |
03-04 |
5083678AA |
N/A |
22 |
Shaft, Differential |
ALL |
97-04 |
83503069 |
$18.95 |
23 |
Pin, Differential Shaft (roll type) |
ALL |
97-04 |
1791563 |
$1.95 |
Pin, Differential Shaft (threaded type) |
ALL |
98-99 |
5252502 |
$3.95 |
24 |
Bolt Kit, Ring Gear to Carrier (10) 3/8" long |
ALL |
97-04 |
4720891 |
$11.95 |
Bolt Kit, Ring Gear to Carrier (10) 7/16" long |
ALL |
02-04 |
5012810AC |
$7.95 |
26 |
Gasket, Differential Cover |
ALL |
97-01 |
8122409 |
$2.95 |
27 |
RTV Silicone Sealant |
ALL |
97-02 |
5010884AA |
$6.95 |
28 |
Plug, Differential Cover |
ALL |
97-02 |
5252504AB |
$3.95 |
|
29 |
Bearing & Seal Master Kit |
ALL |
97-04 |
D44TJ-MASKIT |
CALL |
