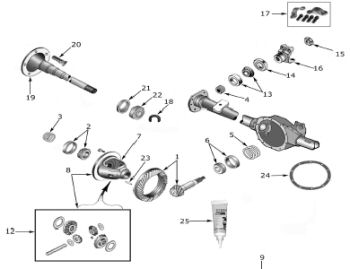

Model 35 Rear Axle for Jeep Grand Cherokee ZJ & ZG |
|
NO. |
DESCRIPTION |
RATIO |
YEARS |
PART# |
PRICE |
1 |
Ring & Pinion set (42469 / 42725) |
3.55 (39-11) |
1993 |
83504376 |
$409.95 |
Ring & Pinion set (46131 / 46132) |
3.55 (39-11) |
94-98 |
4761676 |
$508.95 |
Ring & Pinion set (46135 / 46136) |
3:73 (41-11) |
93-98 |
4761678 |
$377.95 |
2 |
Side Bearing Set |
ALL |
93-98 |
8126500 |
$42.95 |
3 |
Shim Set, carrier |
ALL |
93-98 |
83503004 |
$32.95 |
4 |
Spacer, Pinion (Crush Sleeve) |
ALL |
93-98 |
3175779 |
$3.95 |
5 |
Shim Set, Pinion |
ALL |
93-98 |
4720922 |
$10.95 |
6 |
Bearing Set, Pinion INNER |
ALL |
93-98 |
5252507 |
$30.95 |
7 |
Case, Differential (Std.) |
3.55, 3.73 |
93-98 |
44590 |
$175.95 |
8 |
Case Assy, STANDARD (includes gear set) |
ALL |
93-98 |
4740834 |
$330.95 |
|
9 |
Case Assembly, TRAC-LOK |
ALL |
93-98 |
5252496 |
$433.95 |
10 |
Gear and Plate Kit, TRAC-LOK |
ALL |
93-98 |
4773010 |
$203.95 |
11 |
Plate Kit, TRAC-LOK |
ALL |
93-98 |
5252506 |
$76.95 |
12 |
Gear Set, Differential - STANDARD |
ALL |
93-98 |
4740670 |
$109.95 |
13 |
Bearing Set, Pinion OUTER |
ALL |
93-98 |
5252508 |
$21.95 |
14 |
Seal, Pinion |
ALL |
93-98 |
83504946 |
$8.95 |
15 |
Nut, Pinion |
ALL |
93-98 |
4720895 |
$6.95 |
16 |
Yoke, Pinion (2.98" Overall height) |
ALL |
93-96 |
83503318 |
$31.95 |
Yoke, Pinion (3.29" Overall high) |
ALL |
96-98 |
4797552 |
$40.95 |
17 |
Strap & Bolt Kit, U-joint - TORX (12 point) |
ALL |
93-98 |
4006928K |
$7.95 |
Strap & Bolt Kit, U-joint - HEX HEAD |
ALL |
93-98 |
4006698K |
$ 8.95 |
18 |
Clip, Axle Shaft |
ALL |
93-98 |
5252505 |
$ 5.95 |
19 |
Axle Assy, Right (29.00") w/Drum Brakes |
ALL |
93-96 |
4713192 |
$135.95 |
Axle Assy, Left (30.62") w/Drum Brakes |
ALL |
93-96 |
4713193 |
$136.95 |
Axle Assy, Right (29.00") w/Disc Brakes |
ALL |
94-98 |
4762194 |
$139.95 |
Axle Assy, Left (30.62") w/Disc Brakes |
ALL |
94-98 |
4762195 |
$139.95 |
20 |
Stud, Wheel w/Drum Brakes |
ALL |
1993 |
83503053 |
$1.95 |
Stud, Wheel w/Disc Brakes |
ALL |
94-98 |
53007463 |
$1.95 |
21 |
Seal, Axle Shaft Outer |
ALL |
93-98 |
4856336 |
$15.95 |
22 |
Bearing, Outer Axle |
ALL |
93-98 |
8134586 |
$14.95 |
23 |
Pin, Differential Shaft (threaded pin type) |
ALL |
93-98 |
5252502 |
$3.95 |
24 |
Gasket, Differential Cover |
ALL |
93-98 |
35AX-CG |
$7.95 |
25 |
RTV Silicone Sealant |
ALL |
93-98 |
5010884AA |
$6.95 |
|
26 |
Bearing and Seal Kit, Master Kit |
ALL |
93-98 |
D35-MASKIT |
$104.95 |
27 |
Pinion Bearing and Seal Kit, Master Kit |
ALL |
93-98 |
D35-PBK |
$59.95 |
