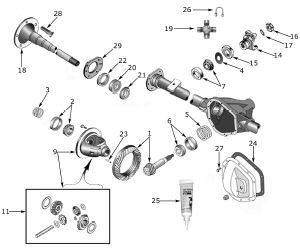

Model 44 Rear Axle for 1986 Jeep CJ |
|
NO. |
DESCRIPTION |
RATIO |
PART# |
PRICE |
1 |
Ring & Pinion set (43/13) |
3:31 |
8134219 |
$338.95 |
Ring & Pinion set (46/13) |
3:54 |
8129217 |
$298.95 |
Ring & Pinion set (45/11) |
4:09 |
8129225 |
$309.95 |
Ring & Pinion set (50/11) |
4:56 |
3503087 |
N/A |
2 |
Side Bearing Set (2 bearings & 2 cups) |
ALL |
8124071 |
$55.95 |
3 |
Shim Set, carrier |
ALL |
8129222 |
$11.95 |
4 |
Slinger, Pinion |
ALL |
4031974 |
$5.95 |
5 |
Shim Set, Pinion |
ALL |
8129221 |
$43.95 |
6 |
Bearing Kit, Pinion INNER (cup and cone) |
ALL |
8124051 |
$43.95 |
7 |
Bearing Kit, Pinion OUTER (cup and cone) |
ALL |
8124052 |
$39.95 |
|
8 |
MASTER BEARING, SEAL, & Hardware KIT |
ALL |
D44Y-MASKIT |
$257.95 |
9 |
Case Assy, STANDARD (includes gear set) |
2:72, 3:31, 3:54 |
83503073 |
$231.95 |
Case Assy, STANDARD (includes gear set) |
4:09, 4:56 |
83503067 |
N/A |
|
10 |
Case Assy, LOCKING (includes gears & plates) |
2:72, 3:31, 3:54 |
83505431 |
$473.95 |
11 |
Gear Set, Differential, STANDARD |
ALL |
83503068 |
$203.95 |
12 |
Gear Set, Differential, LOCKING |
ALL |
8129220 |
N/A |
13 |
Disc Kit, Locking differential |
ALL |
994345 |
$99.95 |
14 |
Yoke, Driveshaft |
ALL |
8131656 |
$49.95 |
15 |
Seal, Pinion |
ALL |
998092 |
$3.95 |
16 |
Nut, Pinion |
ALL |
1791575 |
$2.95 |
17 |
Washer, Pinion |
ALL |
1791576 |
$1.95 |
18 |
Axle Assy, Right 28.79" long |
ALL |
83503074 |
N/A |
Axle Assy, Right 25.29" long |
ALL |
83503075 |
N/A |
19 |
U-Joint, (1.06" cap) |
ALL |
8126614 |
$12.95 |
U-Joint, (1.06" cap) SPICER |
ALL |
8126614S |
$16.95 |
20 |
Bearing, Wheel |
ALL |
83503064 |
$36.95 |
21 |
Ring, Axle bearing retaining |
ALL |
83503077 |
$ 9.95 |
22 |
Seal, Wheel Bearing |
ALL |
83503063 |
$ 5.95 |
23 |
Pin, Differential Shaft (roll type) |
ALL |
1791563 |
$1.95 |
24 |
Gasket, Differential Cover |
ALL |
8122409 |
$2.95 |
25 |
RTV Silicone Sealant |
ALL |
5010884AA |
$6.95 |
26 |
U-bolt - (U-joint) |
ALL |
A-490 |
$ 3.95 |
27 |
Bolt, Differential Cover |
ALL |
273573 |
$ 1.95 |
28 |
Stud, Wheel |
ALL |
5355719 |
$1.95 |
29 |
Retainer |
ALL |
83504190 |
$6.95 |
