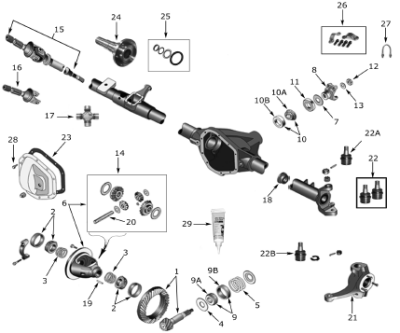

Model 44 Front Axle for Jeep SJ |
|
NO. |
DESCRIPTION |
YEARS |
RATIO |
PART# |
PRICE |
1 |
Ring & Pinion set (43/13) |
1980-91 |
3.31 |
8134219 |
$338.95 |
Ring & Pinion set (41/11) |
1974-91 |
3.73 |
8124777 |
$344.95 |
Ring & Pinion set (44/09) |
1974-86 |
4.88 |
8124386 |
$287.95 |
2 |
Side Bearing Set |
1974-91 |
ALL |
8124071 |
$55.95 |
3 |
Shim Set, carrier (includes gasket) LDA |
1974-86 |
ALL |
8124791 |
$17.95 |
Shim Set, carrier (includes sealant) WDA |
1982/84 87/91 |
ALL |
8129222 |
$11.95 |
4 |
Slinger, inner |
1974-91 |
ALL |
3893982 |
$4.95 |
5 |
Shim Set, Pinion (includes sealant) |
1974-91 |
ALL |
8129221 |
$43.95 |
6 |
Case Assy, Differential (includes gear set) |
1974-91 |
3.31, 3.73 |
8124038 |
N/A |
1976-86 |
4.88 |
8124077 |
$284.95 |
7 |
Slinger, outer |
1974-91 |
ALL |
4031974 |
$5.95 |
8 |
Yoke, Driveshaft |
1980-86 |
ALL |
8131656 |
$49.95 |
Yoke, Driveshaft |
1987-91 |
ALL |
83503388 |
$37.95 |
9 |
Bearing Set, Pinion, Inner |
1974-91 |
ALL |
8124051 |
$43.95 |
9A |
Pinion Bearing, Inner (cone) |
1974-91 |
ALL |
0807266 |
$31.95 |
9B |
Pinion Bearing, Inner (cup) |
1974-91 |
ALL |
0052877 |
$13.95 |
10 |
Bearing Set, Pinion, Outer |
1974-91 |
ALL |
8124052 |
$39.95 |
10A |
Pinion Bearing, Outer, (Cone) |
1974-91 |
ALL |
0052878 |
$19.95 |
10B |
Pinion Bearing, Outer, (Cup) |
1974-91 |
ALL |
0052879 |
$10.95 |
12 |
Seal, Pinion (w/ Yoke slinger) |
1974-86 |
ALL |
998092 |
$3.95 |
Seal, Pinion (w/o Yoke slinger) |
1987-91 |
ALL |
83503390 |
$5.95 |
12 |
Nut, Pinion |
1974-91 |
ALL |
1791575 |
$2.95 |
13 |
Washer, Pinion |
1974-91 |
ALL |
1791576 |
$1.95 |
14 |
Gear Set, Differential (w/o disconnected axle) |
1974-91 |
ALL |
8129228 |
$107.95 |
Gear Set, Differential (w/ disconnected axle) |
1982-84 |
ALL |
4762140 |
$162.95 |
15 |
Axle Assy, Left, (w/o disconnect axle) |
1980-81 |
ALL |
8132913 |
N/A |
Axle Assy, Left (w/ disconnect axle) |
1982-84 |
ALL |
8134226 |
N/A |
Axle Assy, Right |
1980-91 |
ALL |
8132912 |
N/A |
16 |
Shaft, Axle Outer |
1980-91 |
ALL |
8132914 |
$79.95 |
17 |
U-Joint, Front Axle |
1974-91 |
ALL |
8126638 |
$16.95 |
18 |
Seal, axle shaft inner (2-5/8" O.D.) |
1980-81 |
ALL |
8129096 |
$5.95 |
Seal, axle inner - Right (w/ disconnect axle) |
1982-84 |
ALL |
83501009 |
$5.95 |
19 |
Pin, Differential Shaft (roll type) |
1974-91 |
ALL |
0636360 |
$-.95 |
20 |
Shaft, Differential |
1974-91 |
ALL |
0805327 |
$7.95 |
21 |
Knuckle, Steering, Right |
1977-91 |
ALL |
8128610 |
N/A |
Knuckle, Steering, Left |
1977-91 |
ALL |
8128611 |
N/A |
22 |
Ball Joint Kit |
1974-91 |
ALL |
8124333 |
$27.95 |
22A |
Ball Joint, Upper |
1974-91 |
ALL |
8122495 |
$16.95 |
22B |
Ball Joint, Lower |
1974-91 |
ALL |
8122496 |
$16.95 |
23 |
Gasket, Differential Cover |
1974-91 |
ALL |
8122409 |
$2.95 |
24 |
Spindle, Front Axle (w/o disconnect axle) |
1977-91 |
ALL |
8128767 |
$135.95 |
25 |
Bearing Kit, Spindle |
1977-91 |
ALL |
8127356 |
$ 8.95 |
26 |
Strap & Bolt Kit, U-joint |
1980-91 |
ALL |
4006698K |
$ 8.95 |
27 |
Bearing & Seal Kit, Master |
1976-81 |
ALL |
D30E-MASKIT |
$94.95 |
27 |
U-bolt, U-joint |
1974-86 |
ALL |
A-490 |
$ 3.95 |
28 |
Bolt, Differential Cover |
1974-91 |
ALL |
0273573 |
$1.95 |
29 |
RTV Silicone Sealant |
1974-91 |
ALL |
5010884AA |
$6.95 |
