| CRD60R AXLE |

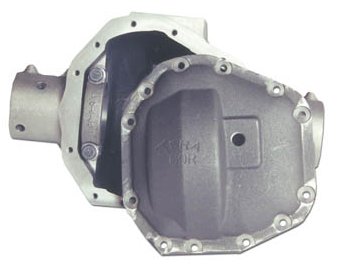

Teraflex CRD60 Rear Axle
 |
Tera CRD60R axles provide high clearance for the trail, reinforce bearing caps for added strength, and a custom mounting pad for three or four link suspensions, or torque control struts, and Constant Radius Design provides high ground clearance that is unaffected by pinion angle adjustments.
The CRD60R front pinion bearing pocket has a renewable oil reservoir that replenishes as you drive and keeps a reservoir of oil that constantly bathes the pinion bearing in cooling oil. Oil from the ring gear creates a halo in all differentials and does not fling until higher speeds are reached. The CRD60R has a built in "skimmer" that cuts the halo and forces oil up to the pinion bearing. Maximum housing oil capacity (over 3 qts.) ensures cool operation for extended highway driving.
HD Outer Bearing - the CRD60R axle allows the use of a larger higher load bearing while still maintaining the factory seal.
Strength Cooling Fins - the CRD60R axle incorporates a unique finned housing to further aid in cooling the differential when used in long term, or highway, applications and provide structural rigidity to the differential.
Radius Bottom - the CRD60R axles smooth bottom design provides the most ground clearance and is virtually unaffected by pinion angle, allowing it to glide over rocks and obstacles. The rotated cover line allows higher pinion angles without risk of damage.
Oil Skimmer - the CRD60R axle incorporates a cast oil skimmer in the center section to increase oil flow to the pinion bearings. Tera's exclusive skimmer forces maximum lubrication at essential points of the axle to help ensure durability
HD Bearing Caps - Designed for maximum strength, the CRD60R side bearing caps are the thickest possible to virtually eliminate flex and distortion. The HD thick bearing caps assist the differential's core strength. |
 |
| APPLICATION |
|
PART # |
PRICE |
| JK |
Basic rear axle - includes axle assembly, shafts, & HD cover |
3350510 |
CALL |
| JK |
Rear - 4.88 R&P, limited slip - Trac-Lok |
3357520 |
CALL |
| JK |
Rear - 4.88 R&P, ARB |
3357500 |
CALL |
| JK |
Rear 4.88 R&P, Detroit |
3357510 |
CALL |
| JK |
Rear - 5.13 R&P, limited slip - Trac-Lok |
3358520 |
CALL |
| JK |
Rear - 5.13 R&P, ARB |
3358500 |
CALL |
| JK |
Rear 5.13 R&P, Detroit |
3358510 |
CALL |
| JK |
Rear - 5.38 R&P, ARB |
3359500 |
CALL |
| JK |
Rear 5.38 R&P, Detroit |
3359510 |
CALL |
| TJ |
Rear - complete assembly, NO differential or R&P |
3310100 |
CALL |
| TJ |
Rear - Housing w/tubes, HD differential cover & big Ford pockets - NO shafts differential, R&P, or disc brake kit |
3350000 |
CALL |
| TJ |
Rear 4.56 R&P, Detroit |
3312456 |
CALL |
| TJ |
Rear 4.56 R&P, ARB |
3311456 |
CALL |
| TJ |
Rear 4.88 R&P, Detroit |
3312488 |
CALL |
| TJ |
Rear 4.88 R&P, ARB |
3311488 |
CALL |
| TJ |
Rear 5.13 R&P, Detroit |
3312513 |
CALL |
| TJ |
Rear 5.13 R&P, ARB |
3311513 |
CALL |
| TJ |
Rear 5.38 R&P, Detroit |
3312538 |
CALL |
| TJ |
Rear 5.38 R&P, ARB |
3311538 |
CALL |
| YJ, XJ & CJ |
Rear |
3320200 |
CALL |
| TJ & XJ |
Front w/ Hubs |
3213200 |
CALL |
| YJ & CJ |
Front w/ Hubs |
3223200 |
CALL |
| TJ & XJ |
Front w/ Unibearing |
3211100 |
CALL |
| YJ & CJ |
Front w/ Unibearing |
3221100 |
CALL |
|
| AXLE BRACKET KITS |
 |

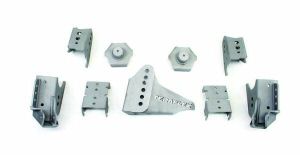

| JK REAR |
3990007 |
CALL |
 |
| TJ REAR |
3990000 |
CALL |
 |
| TJ FRONT |
3690000 |
CALL |
|
| DIFFERENTIAL COVERS |
 |
| Dana 30 HD |
3990630 |
CALL |
 |
| Dana 60 HD | CRD60R HD |
3990660 |
CALL |
 |
| Dana 44 |
3990650 |
CALL |
|
| AXLE COMPONENTS |
 |
| HD 60 Inner "C" Knuckle |
3900860 |
CALL |
 |
| HD 60 LH Outer Knuckle |
3900961 |
CALL |
| HD 60 RH Outer Knuckle |
3900962 |
CALL |
 |
| D60 Ball Joint Set |
3700238 |
CALL |
|
|
|
