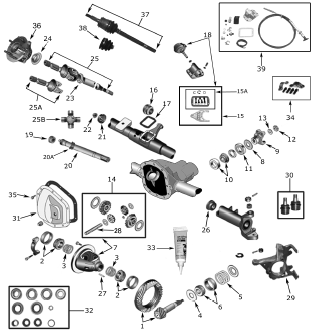

Model 30 Front Axle for Jeep Cherokee XJ |

![[Model 30 front axle]](/axles/images/AxleModel30XJ.gif)
|
NO. |
DESCRIPTION |
YEARS |
RATIO |
PART# |
PRICE |
1 |
Ring & Pinion set |
1986-99 |
3.07 |
83500187 |
$299.95 |
PICTURED: Part No. 4864853
![[Jeep Cherokee axle]](/axles/images/4864853.jpg) |
|
Ring & Pinion set |
00/Oct.1, 2000 |
3.07 |
4864853 |
$625.95 |
Ring & Pinion set |
Oct.2, 2000/01 |
3.07 |
5072997AB |
$257.95 |
Ring & Pinion set |
1986-99 |
3.55 |
83505480 |
$269.95 |
PICTURED: Part No. 5012476AA
![[Jeep Cherokee axle]](/axles/images/5012476AA.jpg) |
|
Ring & Pinion set |
2000-01 |
3.55 |
5012476AA |
$226.95 |
Ring & Pinion set |
1994-96 |
3.73 |
4741015 |
$617.95 |
Ring & Pinion set (reverse spiral) |
84/85,97/ 10/1/00 |
3.73 |
4746074 |
$316.95 |
Ring & Pinion set (reverse spiral) |
95/97 RHD |
3.73 |
4746074 |
$316.95 |
Ring & Pinion set |
Oct 2, 2000 / 01 |
3.73 |
4746074 |
$316.95 |
PICTURED: Part No. 83502353
![[Jeep Cherokee XJ axle]](/axles/images/83502353.jpg) |
|
Ring & Pinion set |
1986-00 |
4.10 |
83502353 |
$335.95 |
Ring & Pinion set |
1986-93 |
4.56 |
83503424 |
$275.95 |
2 |
Side Bearing Set |
1984-01 |
ALL |
8126500 |
$42.95 |
3 |
Shim Set, carrier |
1984-99 |
ALL |
83500191 |
$29.95 |
Shim Set, carrier |
2000-01 |
ALL |
4720863 |
$47.95 |
4 |
Slinger, inner |
1984-96 |
ALL |
3893982 |
$4.95 |
5 |
Shim Set, Pinion |
1984-01 |
ALL |
83500192 |
$31.95 |
6 |
Bearing Set, Pinion (inner) |
1984-01 |
ALL |
8126499 |
$31.95 |
7 |
Case Assy, Differential (includes gear set) |
1984-89 |
3.73, 4.10, 4.56 |
83500169 |
$176.95 |
1990-01 |
3.07, 3.55 |
5252582 |
$222.95 |
1990-01 |
3.73, 4.10, 4.56 |
5252590 |
$285.95 |
8 |
Slinger, outer |
1984-01 |
ALL |
4031974 |
$5.95 |
9 |
Yoke, Driveshaft (OEM had no slinger) |
1984-87 |
ALL |
8131656 |
$49.95 |
Yoke, Driveshaft (OEM had slinger) |
1988-01 |
ALL |
83503388 |
$37.95 |
10 |
Bearing Set, Pinion (outer) |
1984-99 |
ALL |
8124052 |
$39.95 |
Bearing Set, Pinion (outer) |
2000-01 LHD |
ALL |
5252508 |
$21.95 |
Bearing Set, Pinion (outer) |
01 RHD |
ALL |
8126499 |
$31.95 |
11 |
Seal, Pinion |
1984-90 |
ALL |
998092 |
$3.95 |
Seal, Pinion (with slinger on yoke) |
1984-90 |
ALL |
83503390 |
$5.95 |
Seal, Pinion |
91/Oct.1, 2000 |
ALL |
4746772 |
$11.95 |
Seal, Pinion |
Oct.2, 2000/01 |
ALL |
5072473AA |
$9.95 |
12 |
Nut, Pinion |
1984-01 |
ALL |
1791575 |
$2.95 |
13 |
Washer, Pinion |
1984-01 |
ALL |
1791576 |
$1.95 |
14 |
Gear Set, Differential |
1984-90 |
ALL |
83500190 |
$93.95 |
Gear Set, Differential |
1991-01 |
ALL |
5252591 |
$106.95 |
15 |
Fork Kit, Disconnect axle (incl. Clip kit) |
1984-92 |
ALL |
5252599 |
$22.95 |
15a |
Clip Kit, Disconnect vaccum motor |
1984-92 |
ALL |
8133708 |
$2.95 |
16 |
Shift Collar, w/ disconnect axle |
1984-92 |
ALL |
83504813 |
$44.95 |
17 |
Cover Gasket, Disconnect vacuum motor |
1984-92 |
ALL |
4137732 |
$2.95 |
18 |
Vacuum Motor Kit, Disconnect axle |
1984-90 |
ALL |
83503113 |
$67.95 |
Vacuum Motor Kit, Disconnect axle |
1991-92 |
ALL |
4506116 |
$65.95 |
19 |
Bearing, Disconnect axle intermediate |
1984-89 |
ALL |
8133622 |
$7.95 |
Collar, Disconnect axle intermediate |
1990-92 |
ALL |
5252687 |
$19.95 |
20 |
Shaft, Axle Intermediate, w/ disconnect |
1984-92 |
ALL |
5252594 |
$89.95 |
21 |
Seal, intermediate axle (2.29" O.D.) |
1984-92 |
ALL |
83500199 |
$5.95 |
Seal, intermediate axle (2.12" O.D.) |
1987-92 |
ALL |
83503504 |
$4.95 |
22 |
Bearing, outer shaft w/ disconnect axle |
1984-89 |
ALL |
4137737 |
$8.95 |
Bushing, outer shaft w/ disconnect axle |
1990-92 |
ALL |
5252686 |
$7.95 |
23 |
Slinger, axle shaft inner (steel) |
1984-89 |
ALL |
8126232 |
$5.95 |
Slinger, axle shaft inner (plastic) |
1990-96 |
ALL |
4797769 |
$3.95 |
24 |
Slinger, Outer Axle Shaft (if required) |
1984-01 |
ALL |
83500201 |
$2.95 |
25 |
Axle Assy, Right, w/o ABS, w/ disconnect |
1984-92 |
ALL |
5252145 |
$294.95 |
Axle Assy, Right, w/o ABS, w/o disconnect |
1987-95 |
ALL |
4874302 |
$199.95 |
Axle Assy, Left, w/o ABS, w/ or w/o disc. |
1984-01 |
ALL |
4874303 |
$171.95 |
Axle Assy, Right, w/ ABS, w/o disconnect |
1992-96 |
ALL |
4713188 |
$257.95 |
Axle Assy, Left, w/ ABS, w/o disconnect |
1992-96 |
ALL |
4713189 |
$345.95 |
Axle Assy, Right, w/ ABS |
1997-01 |
ALL |
4874306 |
$267.95 |
Axle Assy, Left, w/ ABS |
1997-01 |
ALL |
4874307 |
$203.95 |
25A |
Shaft, Axle Outer w/o ABS |
84/91, 97/01 |
ALL |
83500184 |
$59.95 |
Shaft, Axle Outer w/o ABS |
1992-96 |
ALL |
4636059 |
$86.95 |
Shaft, Axle Outer with ABS |
1992-01 |
ALL |
4728984 |
$135.95 |
25B |
U-Joint, Front Axle (1.06" cap)(w/o ABS) |
1984-99 |
ALL |
8126637 |
$19.95 |
U-Joint, Front Axle (1.187" cap)(w/ ABS) |
1994-01 |
ALL |
4137757 |
$19.95 |
26 |
Seal, axle shaft inner |
1984-01 |
ALL |
4874477 |
$2.95 |
27 |
Pin, Differential Shaft (roll type) |
1984-01 |
ALL |
1791563 |
$1.95 |
28 |
Shaft, Differential |
1984-01 |
ALL |
5003840AA |
$13.95 |
29 |
Knuckle, Steering, Right |
1984-89 |
ALL |
53000626 |
$95.95 |
Knuckle, Steering, Left |
1984-89 |
ALL |
53000625 |
$95.95 |
Knuckle, Steering, Right |
1990-01 |
ALL |
52067576 |
$85.95 |
Knuckle, Steering, Left |
1990-01 |
ALL |
52067577 |
$85.95 |
30 |
Ball Joint Kit |
1984-01 |
ALL |
83500202 |
$35.95 |
31 |
Cover, Differential |
1991-99 |
ALL |
5252583 |
$30.95 |
Cover, Differential |
2000-01 |
ALL |
5012451AA |
$56.95 |
32 |
Bearing and Seal Kit |
1984-99 |
ALL |
D30E-MASKIT |
$94.95 |
Bearing and Seal Kit |
2000-01 |
ALL |
D30L-MASKIT |
$106.95 |
33 |
RTV Silicone Sealan |
1984-01 |
ALL |
5010884AA |
$6.95 |
34 |
Strap & Bolt Kit, U-joint - TORX (12 point) |
1993-98 |
ALL |
4006928K |
$7.95 |
Strap & Bolt Kit, U-joint - HEX HEAD |
1993-98 |
ALL |
4006698K |
$ 8.95 |
35 |
Bolt, Differential Cover |
1984-01 |
ALL |
0273573 |
$1.95 |
PICTURED: Part No. 53000228
![[Jeep Cherokee front hub]](/jeep_brake/images/53000228.jpg)
|
36 |
Hub Assembly, Front Wheel |
1984-89 |
ALL |
53000228 |
$96.95 |
Hub Assembly, Front w/ 2 pc. stamped rotor |
1990-99 |
ALL |
53007449 |
$96.95 |
Hub Assembly, Front w/ 1 pc. Cast rotor |
1999-01 |
ALL |
53007449AC |
$128.95 |
37 |
Axle Assy, CV Type, Left, w/ or w/o disconnect |
1984-86 |
ALL |
53000227 |
$311.95 |
38 |
Boot Kit, CV Type axle joint |
1984-86 |
ALL |
83500698 |
$10.95 |
|
39 |
Posi-Lok (eliminates Front Vacuum Unit) |
1984-91 |
ALL |
PSL900 |
$167.95 |
|
